Ahuja XDA-3004 4× 1200 WATTS

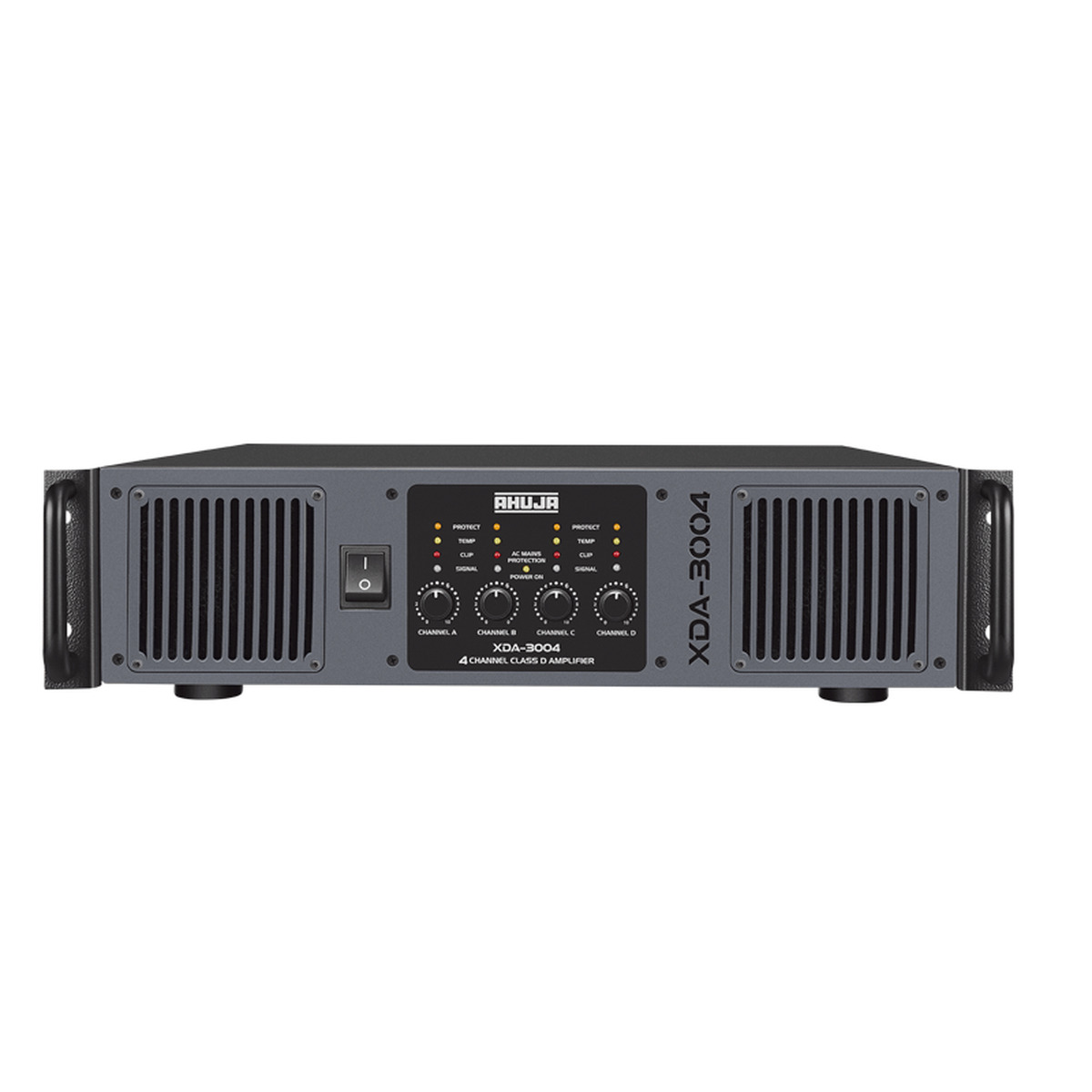

Ahuja XDA-3004 Quad Channel Power Amplifier

Original price was: ₹82,860.00.Current price is: ₹64,845.00.

In stock

The Ahuja XDA-3004 Quad Channel Power Amplifier. Four-channel Class D amplifier with 4×1200 WATTS rated output per channel.

XDA-3004 Features:

  • Four Channel Class D Power Amplifier.
  • 1200 Watts rated output from each channel.
  • Three selectable modes of operation: Individual, Dual and ALL.
  • Built-in Limiter ON/OFF circuit.
  • Toroidal Transformer power supply.
  • Two selectable input sensitivities.
  • Built-in Amplifier Protection system: DC offset, HF, Short circuit, Thermal, Overload, Overvoltage & Clip Monitoring.
  • Rack mountable in 3U Size.
  • BIS approved.
SKU: PRS-XDA-3004 Categories: , , Tag: Brand:
BrandAhuja
ModelXDA-3004
TypeClass D Quad Channel
Continuous Rated Power Stereo/Mono8Ω : 700W + 700W + 700W + 700W RMS, 4Ω : 1200W + 1200W + 1200W + 1200W RMS
THD + N< 0.1%
Frequency Response (-1dB)20-20,000Hz
Power Bandwidth (0.5% THD)20-20,000Hz
Input Sensitivity0dBu (775mV) & 4dBu (1.23V) (Selectable)
Input Impedance10k Unbalanced, 20k Balanced
Signal to Noise Ratio> 100dB
Channel Separation> 65dB at 1kHz
Damping Factor (8Ω)>1000
Slew Rate20V/µs
ProtectionsTemperature, DC, RFI, Short Circuit, Overload, Overvoltage, Built-in Limiter (ON/OFF) AC: Circuit Protector 20A; ± DC: Fuse 2×12A (T 12A L) for each channel
Input Connectors4×XLR, Stereo Phone Jack 6.3mm
Output ConnectorsSpeakon 4-Way for each channel
Cooling4 × Variable Speed DC Fan with Temperature Sensing
Front Panel Controls4×41 Step Level Attenuators
IndicatorsPower ON/AC Mains Protection, Signal, Clip, Temperature, Protect (Ch. A, B, C & D)
Power Consumption (Rated)5620W; 6460va @ 220-240V ~ 50/60Hz
DimensionsW482 × H126 × D540mm
Weight28.50kg
