Ahuja XDA-5002 1800W + 1800W RMS

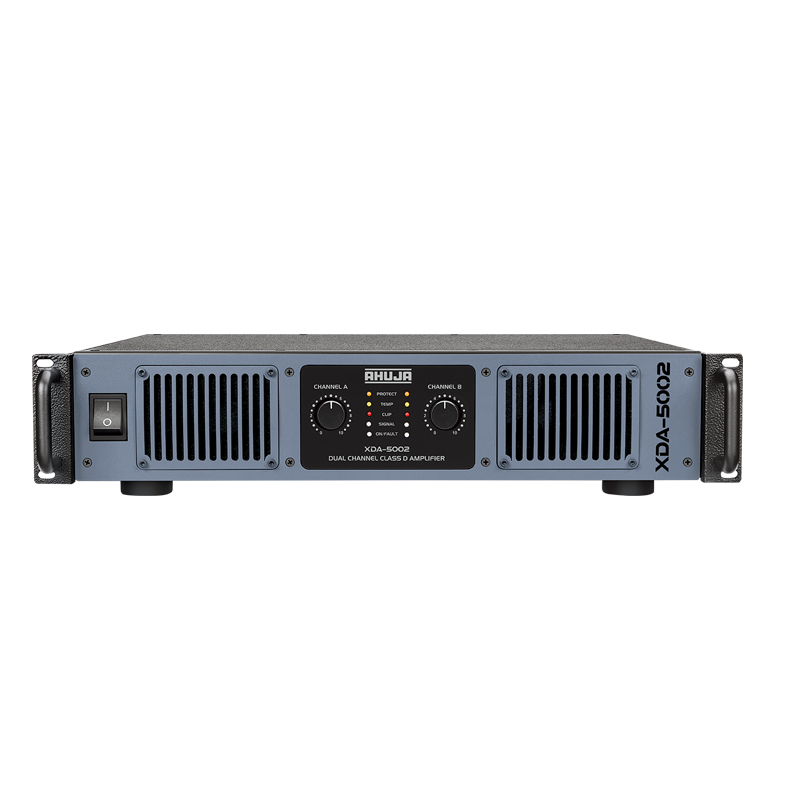

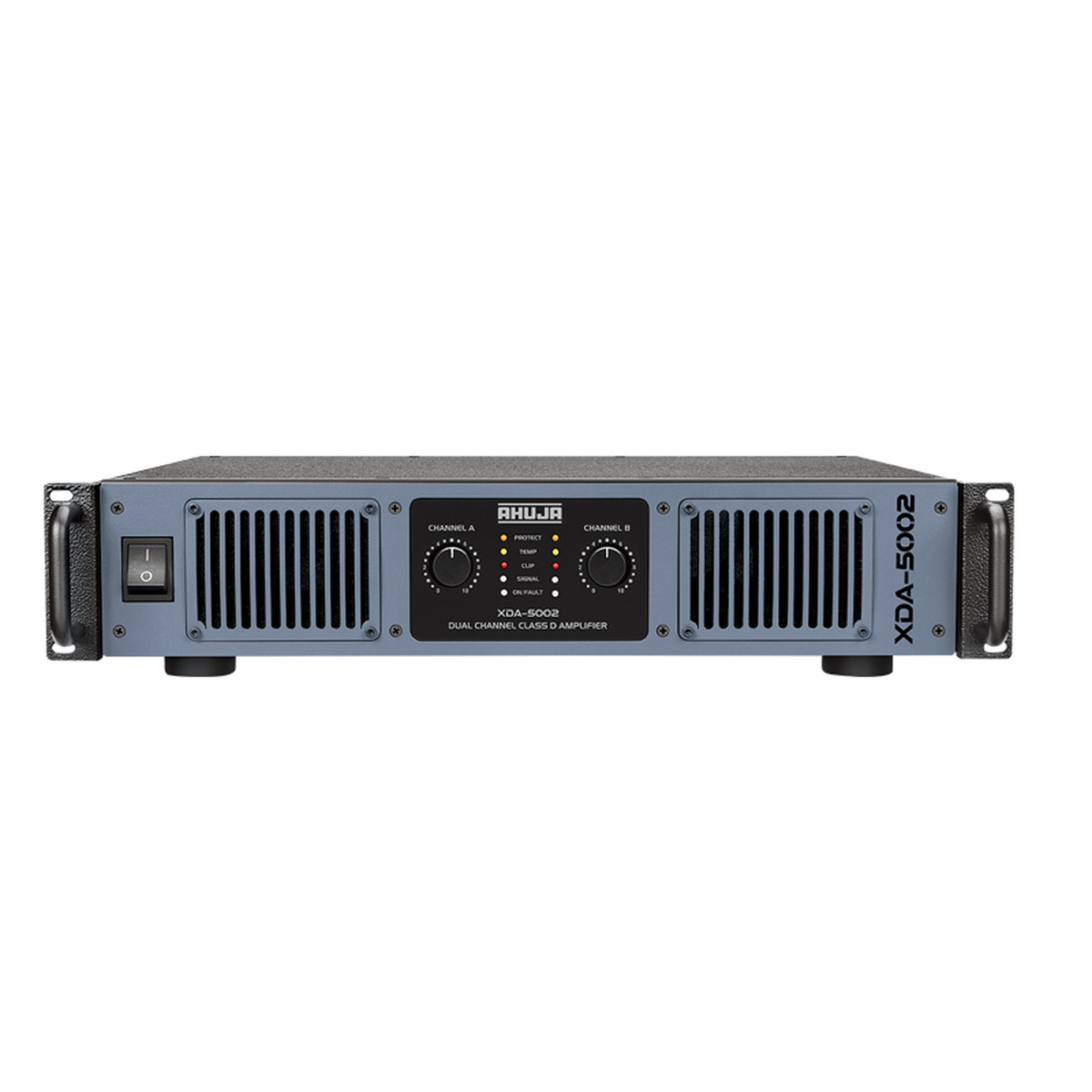

Ahuja XDA-5002 Dual Channel Power Amplifier

Original price was: ₹62,625.00.Current price is: ₹49,010.00.

In stock

The Ahuja XDA-5002 Dual Channel Power Amplifier. Class D dual-channel amplifier with 1800+1800 WATTS RMS rated output.

XDA-5002 Features:

  • Dual Channel Class D Power Amplifier.
  • 1800 + 1800 Watts rated output.
  • 80Hz/120Hz Low Pass Filter.
  • Built-in Limiter ON/OFF circuit.
  • Toroidal Transformer power supply.
  • Two selectable input sensitivities.
  • Built-in Amplifier Protection system: DC offset, HF, Short circuit, Thermal, Overload, Over voltage & Clip Monitoring.
  • Compact 2U Size.
  • BIS approved.
SKU: PRS-XDA-5002 Categories: , , Tag: Brand:
BrandAhuja
ModelXDA-5002
TypeClass D Dual Channel
Continuous Rated Power Stereo/Mono8Ω : 1100W + 1100W RMS, 4Ω : 1800W + 1800W RMS
THD + N< 0.1%
Frequency Response (-1dB)20-20,000Hz
Low Pass Filter80/120Hz @ 24dB per octave
Power Bandwidth (0.5% THD)20-20,000Hz
Input Sensitivity0dBu (775mV) & 4dBu (1.23V) (Selectable)
Input Impedance10k Unbalanced, 20k Balanced
Signal To Noise Ratio> 100dB
Channel Separation> 65dB at 1kHz
Damping Factor (8W)>1000
Slew Rate20V/µs
ProtectionsTemperature, DC, RFI, Short Circuit, Overload, Overvoltage, Built-in Limiter (ON/OFF); AC: Circuit Protector 15A; ± DC: Fuse 2×16A (T 15A L)
Input Connectors2×XLR, Stereo Phone Jack 6.3mm
Output ConnectorsSpeakon 4-Way and heavy duty Binding Post for each channel
Cooling2 × Variable Speed DC Fan with Temperature Sensing
Front Panel Controls2×41 Step Level Attenuators
IndicatorsPower ON/FAULT, Signal, Clip, Temperature, Protect (Ch. A & B)
Power Consumption (Rated)5500VA @ 220-240V ~ 50/60Hz
DimensionsW482 × H104 × D438mm
Weight21.50kg Approx.
