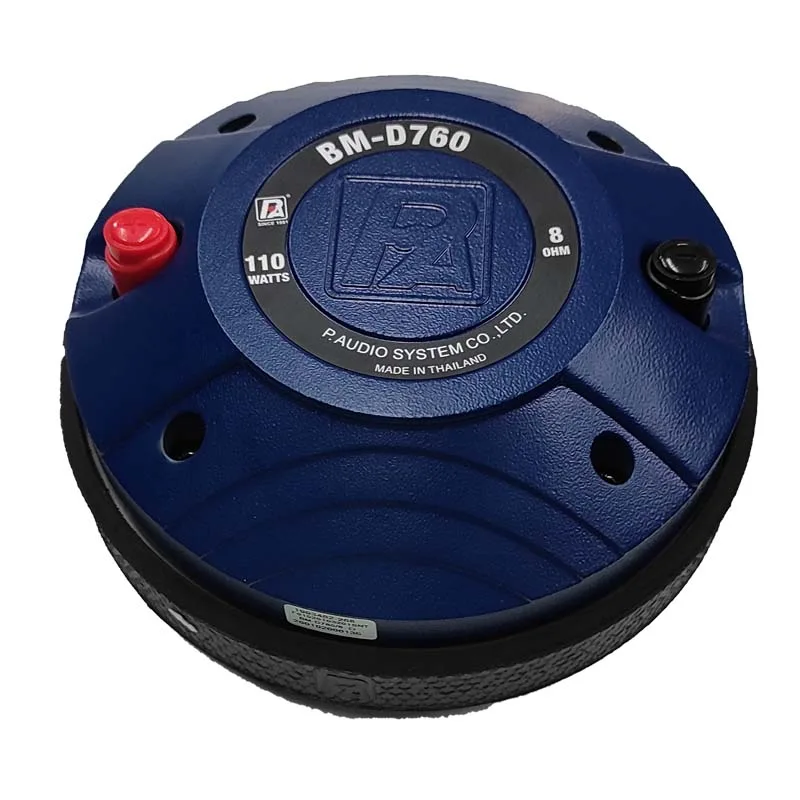

P.Audio BM-D760 2-Inch HF Driver with 110 Watts

5,200.00

Out of stock

Notify Me when back in stock

The P.Audio BM-D760 is 2″ high quality output compression driver with 110 Watts. The P.Audio BM-D760 is a state of the art high output compression driver. Advanced engineering and manufacturing methods have produced an extremely reliable and wide bandwidth device that also features very high fidelity. The BM-D760 is a large format titanium based diaphragm assembly mated to a close spaced circumferential phase plug geometry. The voice coil is a rectangular geometry high temperature aluminum to insure extended high frequency response.

The large 2 inch (51mm) throat exit makes the 760 an excellent choice for high sound pressure level performance. This large throat insures low distortion and high intelligibility, particularly thru the critical upper vocal range. High fidelity thru the upper vocal range translates to increased intelligibility and clarity in this critical upper vocal range. This throat diameter is an industry standard for high output vocal range compression drivers and will mate to a variety of P.Audio 2 inch throat horns as well as many commercially available high frequency horns.

SKU: PRS-BM-D760 Categories: , Tags: , , ,

The Ferrite based permanent magnetic system produces a very high efficiency to weight and size ratio. This makes the BM-D760 ideal for high level professional touring applications as well as high level fixed installation systems.

BM-D760 Specifications:

 BrandP.audio
ModelBM-D760
HF Throat Exit Diameter  2 in
Power rating  110 W(AES)
Nominal impedance  8Ω
Sensitivity  112 dB
Frequency range  1200-20000 Hz
Recommended Crossover  800 Hz
Voice coil diameter  72.2 mm/ 3 in
Voice coil material  Edge Wound Wire Aluminium Ribbon
Voice coil former  Resin Bonded Kapton
MountingType  Bolt on
Magnet  Strontium Ferrite
Diapragm material  Titanium
Net weight  4.8 kg
Shipping weight  5.1 kg
