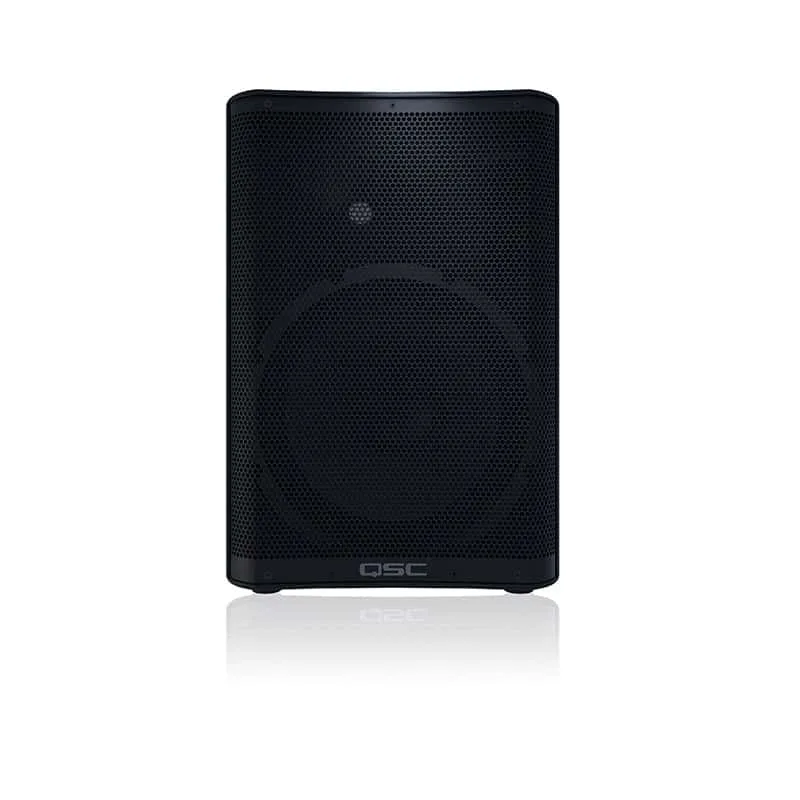

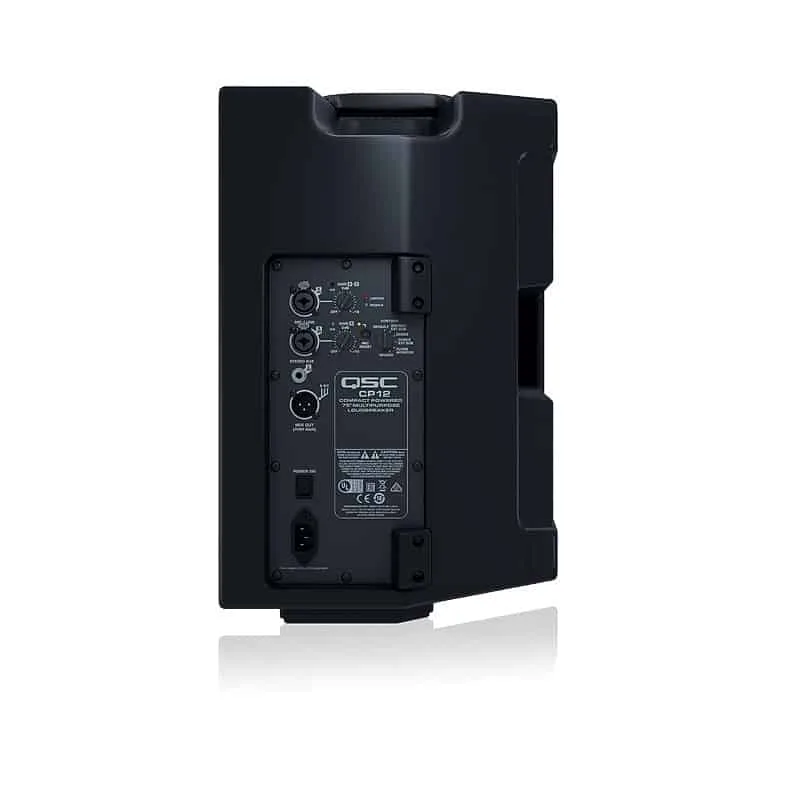

QSC CP12 1000 Watts Compact Active Speaker
Out of stock
The QSC CP12 1000 Watts Compact Active Speaker. The CP12 12″ 1000 Watt Active Speaker comes with High performance, superior quality, and lasting reliability. The CP Series follows in that same tradition while also offering an ultra-compact form factor and class-leading value.
QSC CP12 Features:
- Compact and powerful performance
- 1000 Watt peak power Class-D amplifier module
- Easily selected contours for commonly-used applications
- Advanced DSP with Intrinsic Correction™ for superior sound quality and speaker protection
- Directivity Matched Transition™ (DMT) for consistent frequency response across the entire coverage area
- Lightweight and highly portable
- Professional appearance looks great in any application
- Use for main PA, stage monitor, or instrument amplifier
- 35 mm pole socket
- Optional yoke, tote, and outdoor cover accessories
- Complete EASE and CAD information available online
- 6-Year Warranty*
QSC CP Series is the perfect solution for high-quality audio in a broad range of portable and installed applications.
QSC CP Series come with Yoke Mount Option.
QSC CP 12 Built-in Amplifier and DSP
The 1000 Watt (peak) power module delivers ample burst and continuous power for the loudspeaker’s matching transducers. Convection cooling provides heat dissipation, even in extreme climates, while contributing no additional background noise. Carefully tailored, subtle, and sophisticated dynamics processing is used to protect the drivers from damage and the performance from distortion. The result is a highly accurate and musical sound that maintains full signal integrity, even when pushed to high SPL.
Compact and Light Weight
CP produces a big sound from a small package. Ultra-compact and remarkably lightweight, CP is easy to load, carry, lift and deploy in a wide range of portable and installed applications.
CP presents a compact, unobtrusive and stylish appearance that looks great in a wide range of applications. Both models can be utilized as either main PA (with included pole mount), floor monitor or installed via optional quick-connect yoke mount.
CP provides one-touch access to preset contours for the most commonly-used applications including Default (Full-Range), Default with External Subwoofer, Dance, Dance with External Subwoofer, Floor Monitor and Speech.
CP 12 Specifications:
|Type||12" Active Speaker|
|Configuration||Two-way active loudspeaker|
|LF Transducer||305 mm (12 in), cone|
|HF Transducer||35.6 mm (1.4 in) compression driver|
|Frequency Response (-6 dB)||49 - 20 kHz|
|Frequency Range (-10 dB)||47 - 20 kHz|
|Nominal Coverage Angle||75° Axisymmetric|
|Maximum Rated SPL1||126 dB|
|Amplifier||Class D, Peak: 800 W (LF), 200 W (HF)|
|2 × Input Signal LED|
|Input B MIC selected LED|
|Limiter active LED|

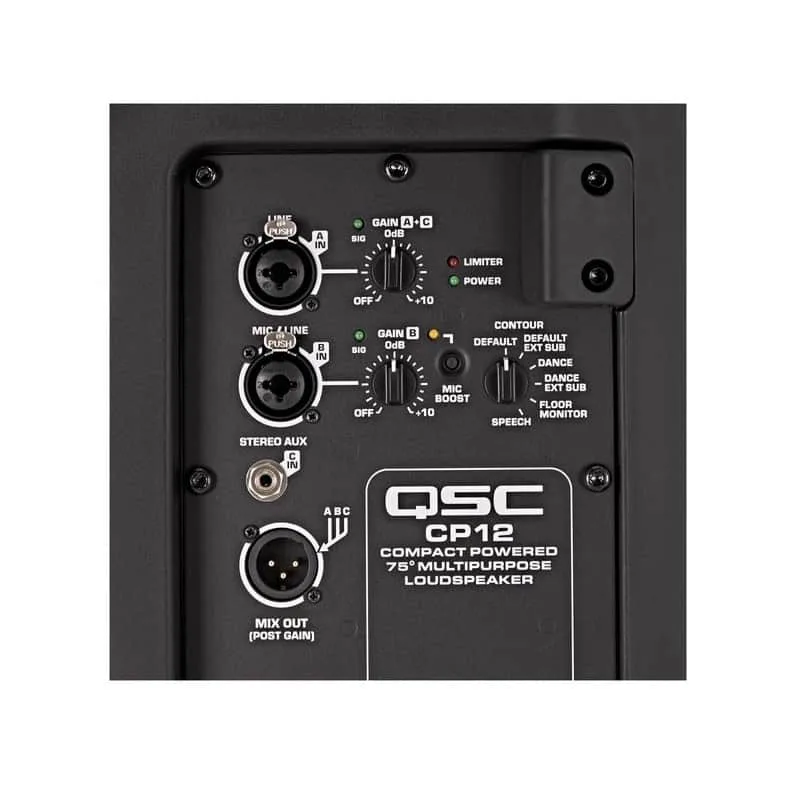

|Connectors||2 × locking XLR/F ¼” combo (Line Input and Mic/Line input)|
|1 × 3.5 mm TRS (Stereo Input)|
|1 × XLR/M (Mix Output)|
|1 × IEC power connector|
|AC Power Input||Universal power supply 100 – 240 VAC, 50 – 60 Hz|
|AC Power Consumption (1/8th Power)||100 VAC, 0.75A - 240VAC 0.31A|
|Attachment Points||M8 threaded insert|
|Color||Black (RAL 9011)|
|Grille||18 Gauge powder-coated steel|
|QSC CP12 Shipping Details|
|Speaker Dimensions (H×W×D)||516 × 350 × 323 mm|
|20.3 × 13.8 × 12.7 in|
|Carton Dimensions (H×W×D)||430 × 430 × 604 mm|
|17 × 17 × 23.8 in|
|Net Weight||13.7 kg|
|Shipping Weight||16.5 kg|
