INSTALLATION LIVE SOUND SYSTEM TITAN 12D AT YOGA STUDIO

by Nov 4, 20180 comments

We install WHARFEDALE TITAN 12 D Active speaker at YOGA STUDIO

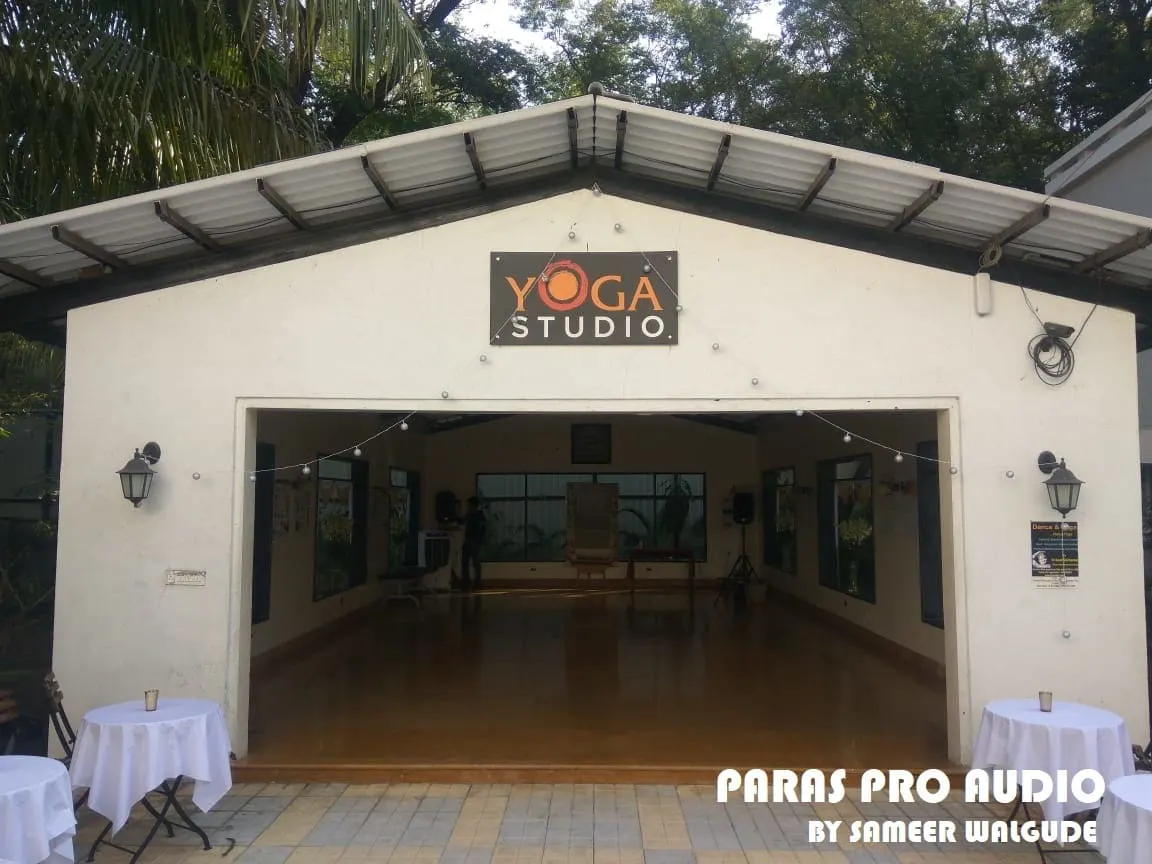

yoga studio 1

Wharfedale 150x150

Wharfedale Titan 12D

The Titan 12D active PA speaker is the result of years honing the Titan design. Q-Bit DSP technology, a titanium compression driver and a heavy-duty cast-frame woofer, ensure absolute accuracy, high output and the smooth, wide dispersion of the critical mid and high frequency ranges, as you would expect in this latest model. Whilst being the mid-sized speaker in its range, it is still regarded as ultra-portable and lightweight, lending itself to a whole host of audio applications from gym and other fixed venue installations along with mobile DJ and band use too.

The Titan Active Series from Wharfedale Pro is proudly one of our most versatile,lightweight active loudspeakers to date. State of the art, bi-amplified, class D technology (now present in all Titan Active models), coupled with the same ruggedbuild of the Titan Passive speakers has resulted in a speaker range ready for almostanywhere – band practice, on stage, in studios, at rehearsals, theaters, even houses of worship. Our latest development boasts the most efficient and powerful system that is now even lighter than the previous generation.
paras titan 12d

Key Features

  • 250W RMS / 500W Peak
  • 127dB Max SPL
  • 55Hz – 20kHz frequency response
  • Custom Heavy duty moisture-proof 12″ LF driver
  • Proprietary 90 x 60 Elliptical Wave Guide Horn design
  • High-end Titanium HF Compression Driver
  • Tough, yet lightweight Polypropylene molded cabinet with rubber padded handles
  • Multiple M6, M8 & M10 rigging points and integral tripod stand adapter
  • Rugged protective grille and top-stacking receptacles
  • Trapezoid shape for arrays as well as stage monitor applications
  • 2-band Hi / Low shelf EQ


SPECIFICATIONS of TITAN 12 D SPEAKER

Configuration2-way Bi-Amplified
Low Frequency Transducer12″
High Frequency Transducer1″ Titanium Compression Driver
Frequency Response55Hz – 20kHz
Power (RMS/Peak)250W / 500W
EQHigh / Low Shelving
Nominal Coverage90° x 60°
Enclosure FinishInjection Moulded Polypropylene
Pole Mount Type35mm insert
Rigging10 x M8 / Optional Bracket
InputXLR / Jack Combi, RCA Phono
OutputXLR
ProtectionIndependant LF and HF Limiters
Net Weight12.4kg / 27.28lbs
Gross Weight15.5kg / 34.1lbs
Dimensions (H x W x D)556 x 384 x 312mm
