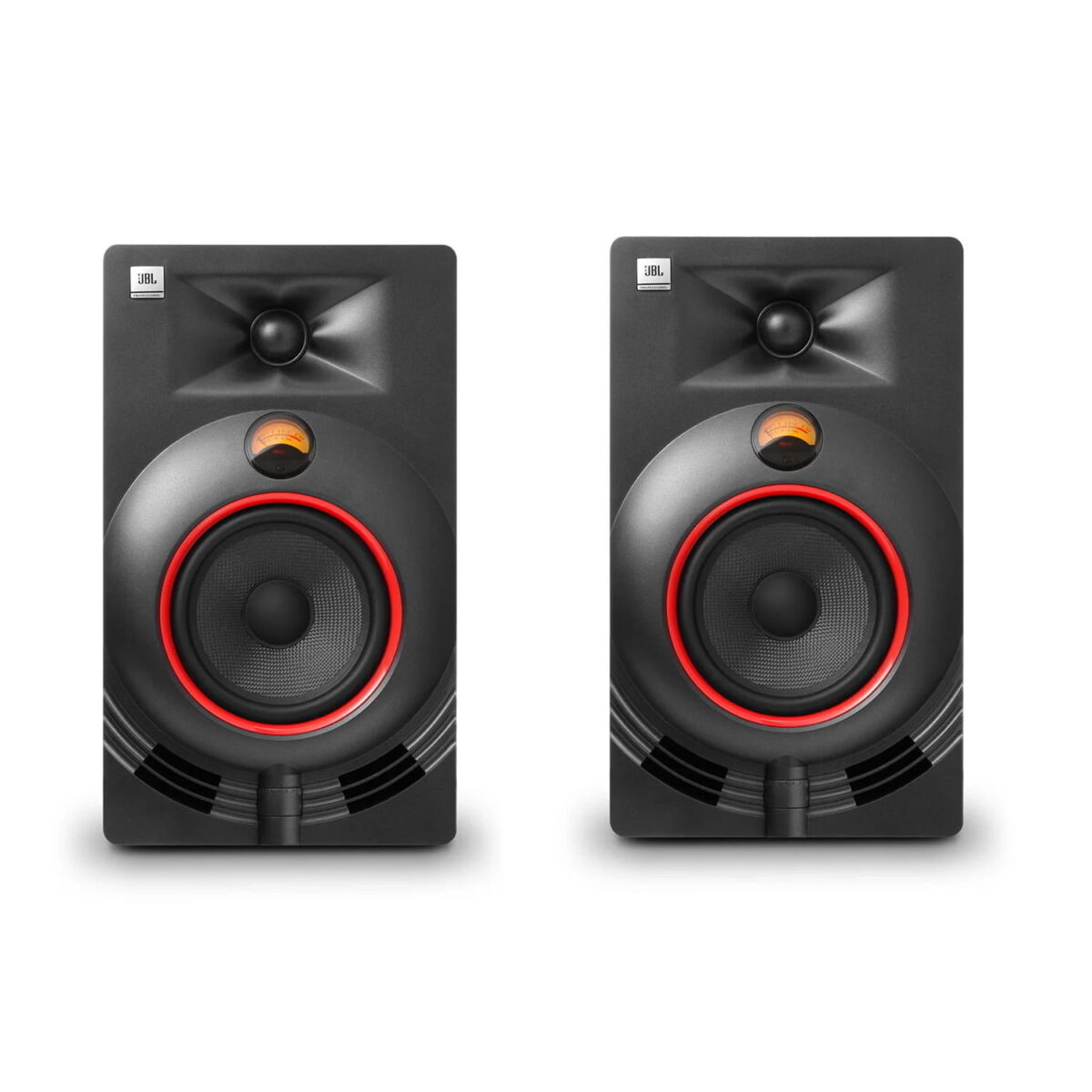

JBL NANO K5 (Pair)

5” Full-range Powered Reference Monitor

16,000.00

Out of stock

Notify Me when back in stock

The JBL NANO K5 powered reference monitor is a 5” standalone speaker that delivers legendary JBL sound quality and accuracy for audio production applications. Perfect for home or professional studios, the NANO K5 features the premium audio performance and detail needed for referencing, mixing and mastering. The monitor also features a sleek design, making it well-suited for any studio or production environment.

Like the rest of the NANO K Series, the K5 features JBL’s patented Image Control Waveguide technology—derived from the flagship M2 master reference monitors—which delivers excellent depth and detail across a broad sweet spot. With this level of accuracy and performance, the monitors provide an ideal referencing experience that allows you to make critical decisions about your mix.

NANO K5 Features

  • Legendary JBL sound quality and accuracy for audio production
  • Image Control Waveguide delivers precise imaging and clarity with a broad sweet spot
  • Optimally positioned tweeter and woofer provides aligned acoustic center and eliminates phasing issues found in other speakers
  • Vintage-style VU meter offers quick and simple monitoring of levels
  • Stylish design with bright orange ring around woofer and music-themed silhouette on rear
  • Power switch and volume control on the front panel offer easy control
  • Pairs perfectly with JBL NANO KX Bluetooth volume controller for Bluetooth integration and wireless streaming capabilities.
GTIN: 691991016684 SKU: PRS-NANO-K5 Categories: , , , , , Tag:

NANO K5 SPECIFICATIONS

BrandJBL
ModelNANO K5
Type5" Full-range Powered Reference Monitor
FREQUENCY RANGE42 Hz – 20 kHz
CROSSOVER Amp2.8 kHz
MAXIMUM SPL (@1M)109 dB
MAXIMUM INPUT LEVELUnbalanced: +6 dBV; Balanced: +20.3 dBV
INPUTS1 x RCA (unbalanced); 1 x TRS or 1 x XLR (balanced)
INPUT SENSITIVITY(-10 dBV INPUT) 92 dB @ 1m
HF DRIVER SIZE0.98” (25 mm)
LF DRIVER SIZE5.25” (133.4 mm)
HF DRIVER POWER AMP60 W Class AB
LF DRIVER POWER AMP60 W Class AB
HF TRIM CONTROL+1 dB, 0 dB, -1 dB, -2 dB @ 10 kHz
LF TRIM CONTROL+2 dB, 0 dB, -1 dB, -2 dB @ 60 Hz
AC INPUT VOLTAGE220 VAC ±10%, 50 – 60 Hz
THD +N< 0.2%
NOISE< 0.3 mV
S/N> 95 dB
ENCLOSURE CONSTRUCTION12 mm
MDF ENCLOSURE FINISHPVC
BAFFLE CONSTRUCTIONABS + PC
DIMENSIONS (H x W x D)317.3 x 186.8 x 229 mm
WEIGHT4.4 kg
DISPLAY CARTON (H x W x D)300 x 256 x 400 mm
SHIPPING CARTON (H x W x D)318 x 274 x 420 mm
SHIPPING WEIGHT5.62 kg UNIT(S) PER
PACKAGE1 piece
UPC Code691991016684
