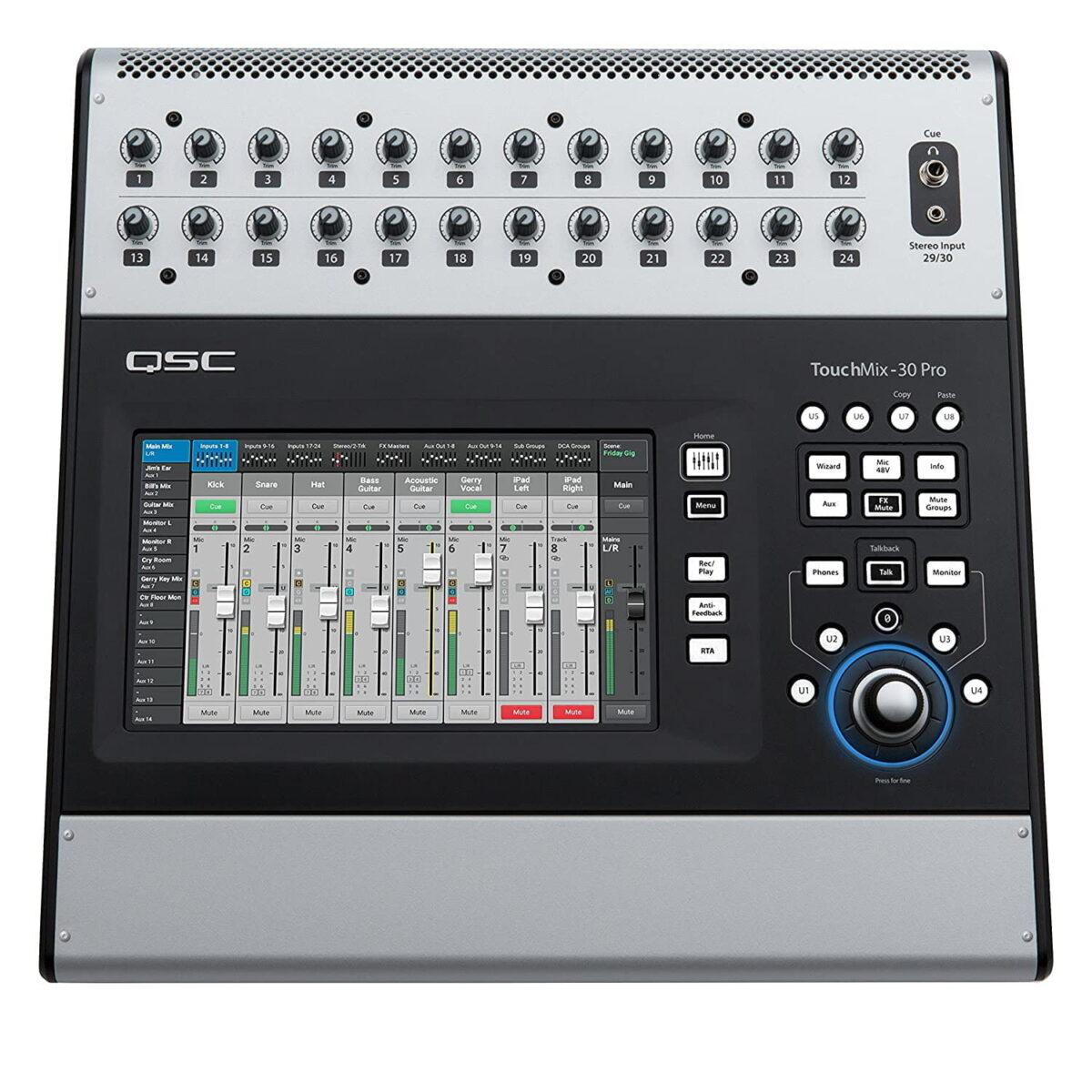

QSC TouchMix-30 Pro 32-Channel Professional Digital Mixer
Original price was: ₹280,000.00.₹170,000.00Current price is: ₹170,000.00.
Out of stock
The QSC TouchMix-30 Pro 32-Channel Professional Digital Mixer. The Touchmix-30 Pro is 32 mixing channels (24 Mic/Line, 6 Line, Stereo USB) and 16 outputs offer tremendous signal management flexibility for a wide range of applications. Advanced features such as class-A microphone preamps, Anti-Feedback and Room Tuning Wizards, two real-time analyzers (RTA), patch matrix, 32-channel direct-to-external-drive recording and DAW interface with MacOS® and Windows® computers make it equally competent as both a professional live sound and a recording tool.
QSC TouchMix-30 Pro Features:
- Large (10-inch) multi-touch touchscreen offers a wealth of on-screen information while also providing confident hands-on control
- Anti-Feedback and Room Tuning Wizards simplify complex equalization tasks
- Two real-time analyzers (RTA) provide instantaneous display of channel tonal balance and room response
- Touch-and-route patch matrix provide easy “multing” and rearrangement of inputs
- 14 Aux mixes provide ample monitor configuration options
- Eight sub-groups with 6-band full parametric EQ, variable high- and low-pass filters and limiter may be linked for stereo
- A gain sharing Automatic Microphone Mixer is available for all 24 mic/line input channels
- 32-channel direct-to-hard drive record/playback — capture and recall performances without the need for an external computer
- 32-channel DAW interface with macOS® and Windows® computers allows for bidirectional I/O with popular workstation software
- MP3 playback direct from USB
- Download future upgrades directly from the Internet
| Brand | QSC |
| Model | TouchMix®-30 Pro |
| Display | 254 mm (10 in) diagonal, 1024 x 600 pixel, color TFT, capacitive multi-touch sensing |
| Inputs | |
| Total | 32 (24 mic/line, 6 line, 2 stereo USB) |
| Mic/Line | 24 (20 XLR, 4 XLR combo) |
| Line | 6 (balanced, 1/4" TRS + top panel 1/8" (3.5 mm) stereo) |
| Stereo USB | Stereo USB / MP3 playback |
| Talkback | 1 (XLR with 48 V) |
| Input Channel Processing | |
| EQ | 4-band Parametric EQ with Hi/Low Shelving option, variable 24 db/octave HPF and LPF |
| Dynamics | Gate, Compressor |
| Delay | Delay (100 msec max) |
| Automatic Microphone Mixer | Gain Sharing, 24 channels, two instances (requires firmware 1.3 or higher) |
| Outputs | |
| Total | 16 |
| Main L/R | 2 (XLR, line-level) |
| Aux | 14 (XLR, line-level) |
| In-ear Monitor (Stereo) | 2 (TRS, 16 ohm min. impedance, from Auxes 11/12 and 13/14) |
| Cue | 2 (Stereo, TRS, line or headphone, 16 ohm min. impedance) |
| Monitor L/R | 2 (Stereo, XLR) |
| Output Channel Processing | |
| EQ | 1/3 octave GEQ, 6-band Parametric EQ, Variable High- and Low-Pass Filters |
| Anti-Feedback Filters | 12-band Anti-Feedback Filters |
| Dynamics | Compressor / Limiter |
| Delay | 100 msec |
| Recording / Playback | |
| Multi-Track | 32 × 32 tracks direct to hard drive |
| DAW | 32 × 32 tracks Interface for macOS® (Core Audio) and Windows® computers |
| MP3 | Stereo USB / MP3 playback |
| Groups | |
| DCA | 8 (with Mutes) |
| Mutes | 8 |
| Sub Groups | 8 (with 6-band Parametric EQ with High- and Low-Pass Filters, Limiter) |
| Cue | Selectable. AFL, PFL, Solo in Place |
| Effects | 6 simultaneous, professional effects engines including Reverb, Echo, Delay, Chorus, Pitch Shift |
| 1 Pitch Correct (assignable to any mono input channel) | |
| Real Time Analyzer (RTA) | 2 (1/3 octave, assignable to channels or user selectable source) |
| Preset Memory | 99 User Scenes, 120 Factory Presets, 99 User Presets |
| Digital Connections | 2 USB A connector, 1 USB B connector, 1 RJ-45 (connection for Wi-Fi router) |
| External Control | TouchMix-30 Control App for iOS® /Android™ (via Wi-Fi). Third party control surfaces (via mixer or iOS® tablet) |
| Wi-Fi | Requires external ethernet Wi-Fi router (recommended) or USB Wi-Fi adaptor 3 (not included) |
