15% OFF

Sennheiser XSW 1-908

All-in-one wireless system for brass instruments.

25,415.00

Out of stock

Notify Me when back in stock

The Sennheiser XSW 1-908 is a all-in-one wireless system for for brass instruments. XSW 1-908 a powerful performance and easy to use. The XS WIRELESS 1 BRASS SET is an easy to use all-in-one wireless system, especially designed to provide a powerful live sound for brass instruments. The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a compact bodypack transmitter and a rugged condenser gooseneck microphone.

XSW 1-908 Key Features:

  • Versatile gooseneck microphone with outstanding sound reproduction from the renowned evolution microphone series
  • Antenna-switching diversity reception
  • Integrated antennas
  • Automatic frequency management and synchronization via remote channel for easy setup
  • Selectable UHF frequencies within a large bandwidth
  • Up to 10 compatible channels
What’s in the Box

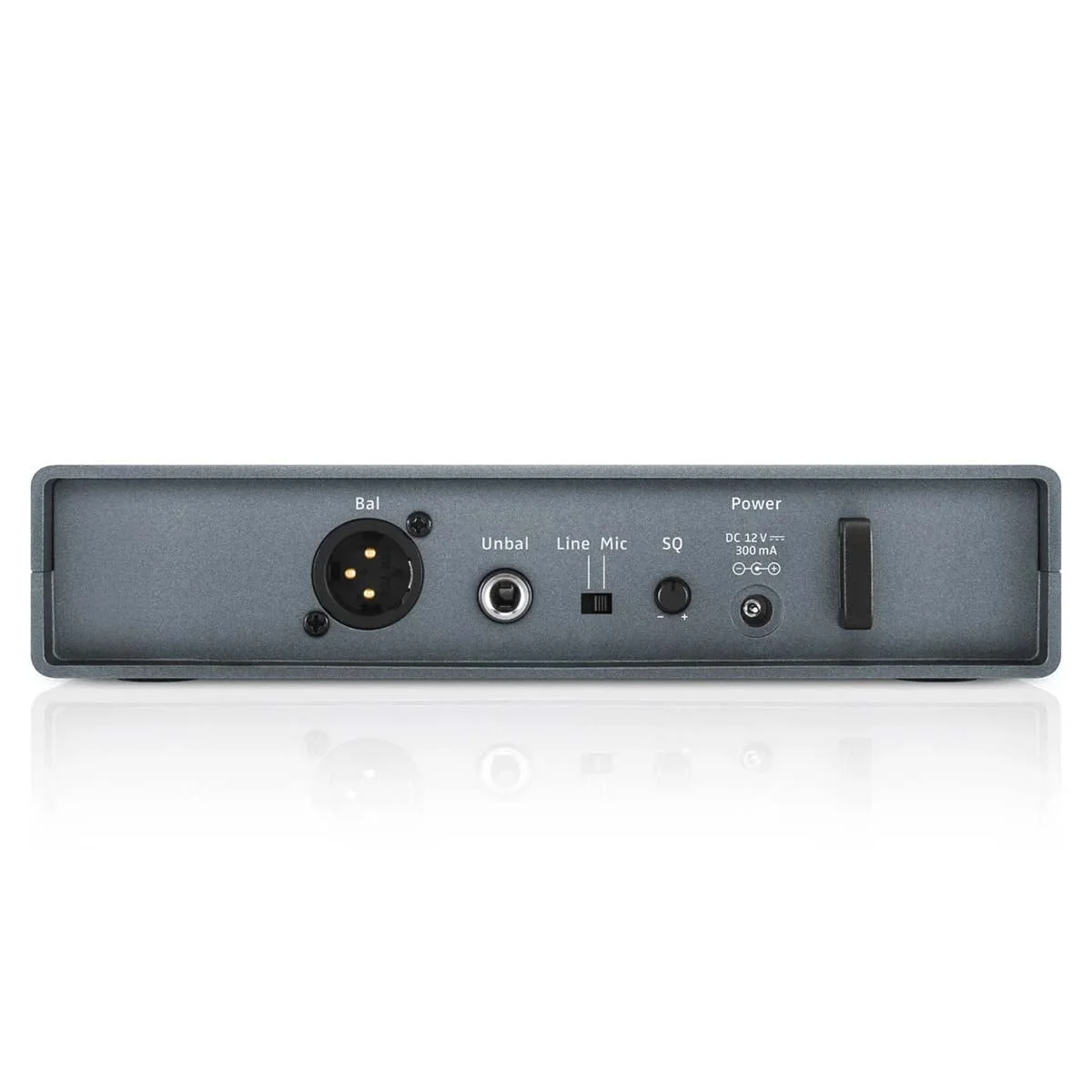

  • 1 receiver EM-XSW 1

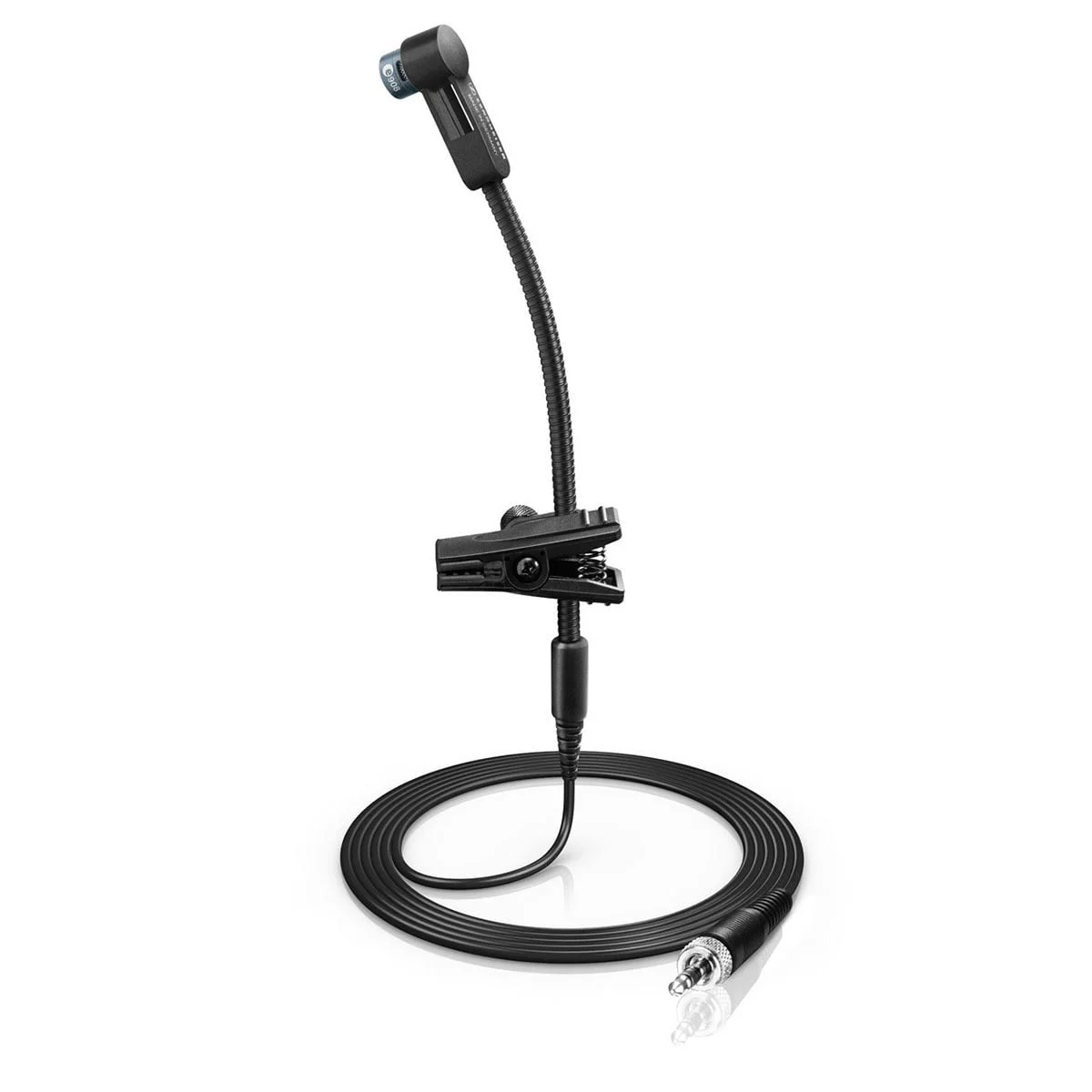

  • 1 gooseneck microphone e908T

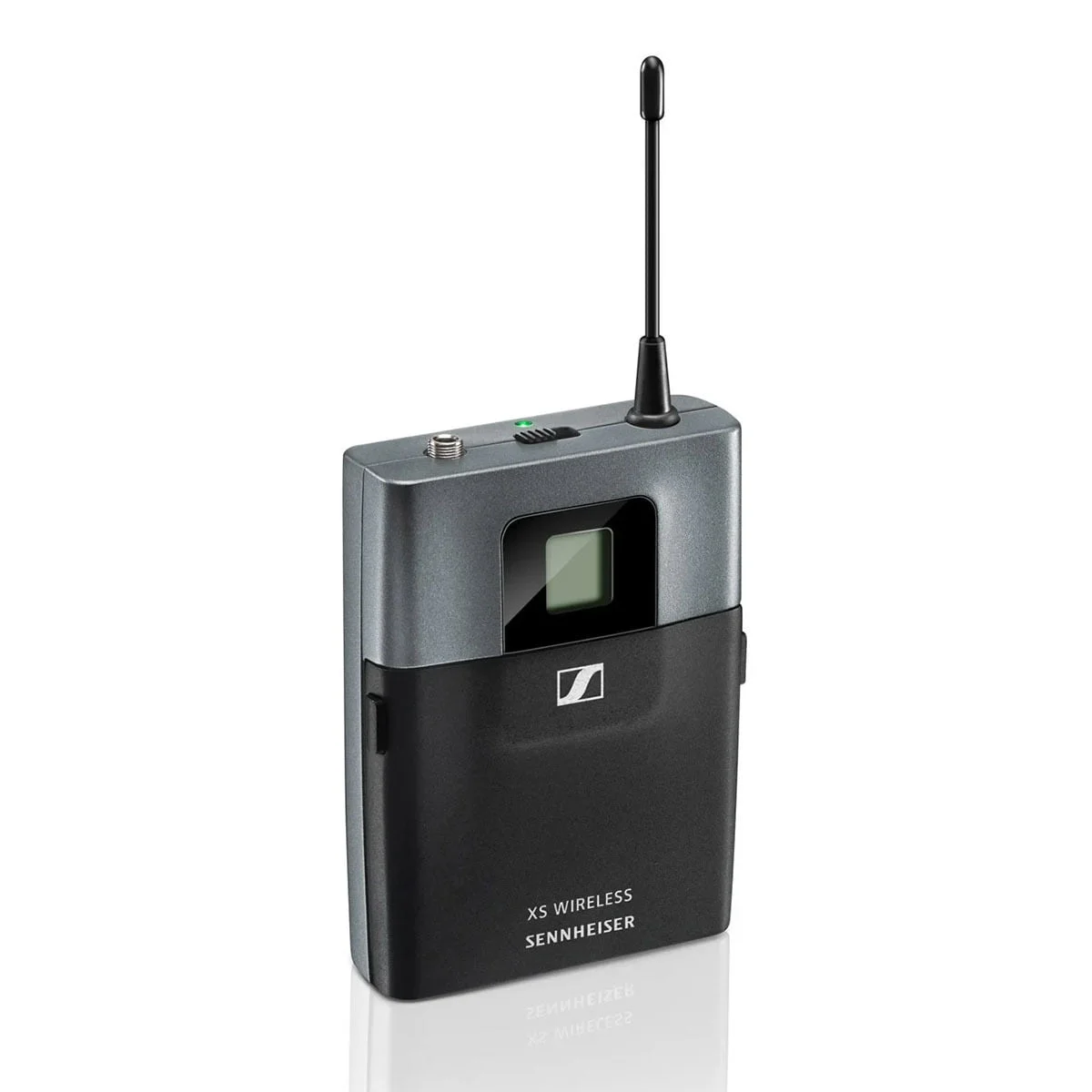

  • 1 bodypack transmitter SK-XSW
  • 1 power supply NT 12-5 CW
  • 2 AA batteries

XSW 1-908 Specifications

BrandSennheiser
ModelXSW 1-908
Microphonecondenser
THD, total harmonic distortion≤ 0.9%
Pick-up patterncardioid
Signal-to-noise ratio≥ 103 dBA
RF output power10 mW
Switching bandwidthup to 24 MHz
Operating timeapprox. 10 hrs
Modulationwideband FM
Output voltage1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
Housingrugged ABS housing
Frequency8 frequency banks, each with up to 10 factory-preset channels
 Frequency rangeA: 548-572 MHz, GB: 606-630 MHz

B: 614-638 MHz, C: 766-790 MHz

D: 794-806 MHz, K: 925-937.5 MHz

E: 821-832 MHz, 863-865 MHz

Dimensionsapprox. 71 x 96 x 28 mm
Weightapprox. 95g
Power supplyTransmitter: 2 AA size batteries, 1.5 V
Adjustment Range Transmitter0 to -30 dB, adjustable in 10 dB steps
Sensitivity< 3 μV at 52 dB(A)rms S/N
SPL for peak deviation147 dB
Squelchadjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
Synchronization2.4 GHz, Low Power OQPSK (only active during synchronization)
Input sensitivity1.5 mV / Pa
Audio adjustment range45 dB, adjustable in 5-dB steps
Line / Mic level20 dB, switchable
Temperature Rangeoperation: 0°C to +40°C, storage: –20°C to +70°C
Receiver Principledouble superheterodyne
Diversity principleantenna switching diversity via internal antennas
Receivers
Dimensionsapprox. 200 x 42 x 127 mm
Weightapprox. 340g
Power supplyReceiver: 12 V DC nom. / 300 mA
AF frequency responseReceiver: 50 to 16,000 Hz (–3 dB)
