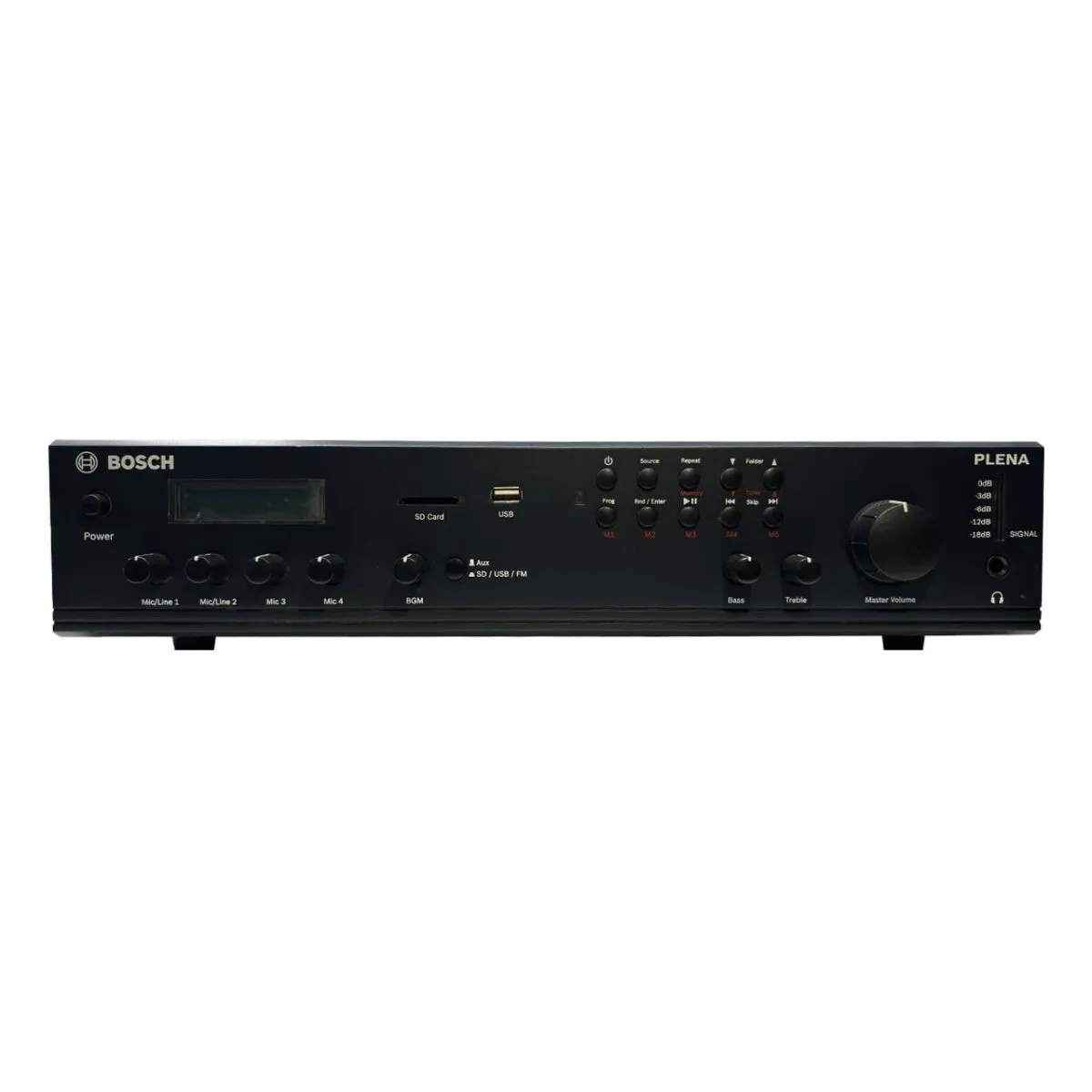

Bosch PLN-1AIO090-IN All-in-one Amplifier frontside
Bosch PLN-1AIO090-IN All-in-one Amplifier
Bosch PLN-1AIO090-IN All-in-one Amplifier Backside
Bosch PLN-1AIO090-IN All-in-one Amplifier 1

Bosch PLN-1AIO090-IN All-in-one Amplifier

Original price was: ₹29,690.00.Current price is: ₹26,900.00.

Only 1 left in stock

Chat Now

The Bosch PLN-1AIO090-IN All-in-one Amplifier, 90 Watt. The All‑in‑one unit can provide hours of uninterrupted music from USB or SD flash memory. The unit also has a built in FM tuner with presets. To ensure for optimum performance, the All‑in‑one unit has no moving parts, such as hard drives that can fail or wear out. The unit is supplied with an IR remote control for controlling the music source. The unit can be rack mounted by using the brackets that can be procured separately.

The PLENA all-in-one mixer amplifier is a versatile solution for public address, emergency announcements and back-ground-music (BGM) requirements. This high-performance device is easy to install and operate. This high-performance device is easy to install and operate. Typical applications of PLENA all-in-one 90W mixer amplifier include use in supermarkets, restaurants, schools, retail chains, canteens, places of worship, gymnasiums etc where BGM provides the right atmosphere, at the same time announcements can be made clearly and with ease.

Bosch PLN-1AIO090-IN Key Features:

  • 4 microphone inputs with independent level control
  • USB drive and SD card for MP3 playback
  • Built-in FM tuner with preset memories
  • 100V/Telephone input with priority and VOX
  • 24 VDC backup power supply input
SKU: PRS-PLN-1AIO090-IN Categories: , ,
BrandBosch
ModelPLN-1AIO090-IN
TypeAll-in-One Amplifier
Watt90W
Loudspeaker Output100 V, 70 V and 4 Ohm
ConnectorEuro-style pluggable screw terminal, Floating
Max./Rated Power120 W/90 W
Loudspeaker Output from 4 Ohm19.0 V from 4 Ohm output
Frequency response80 Hz to 20 kHz (+1/-3 dB@ -10 dB ref. rated output)
Distortion< 1% @ rated output power, 1 kHz
Low Control Max -8/+8 dB
Hi ControlMax -8/+8 dB
Input 1 (push-to-talk contact with priority)5-pin Euro style, balanced, phantom
Input 23-pin XLR, balanced, phantom
Input 3 and 4TRS Jack (1/4, 6.3 mm), balanced, phantom
Sensitivity1 mV (mic); 200 mV (line)
Impedance≧1 kohm (mic.); >5 kohm (line)
S/N at rated power≧60 dB (mic); >65 dB (line)
CMRR (mic.)>40 dB
Phantom power supply 9 V via 1.2 kohm (mic)
Speech filter-3 dB @ 315 Hz, high-pass, 6 dB/oct

Additional information

Brand

Warranty

FEATURES

USB

What's in the Box?

(1) All-in-one mixer amplifier, (1) Power cord, (1) Remote control for music source, (1) FM antenna with connector, (1) Installation and operating manual
