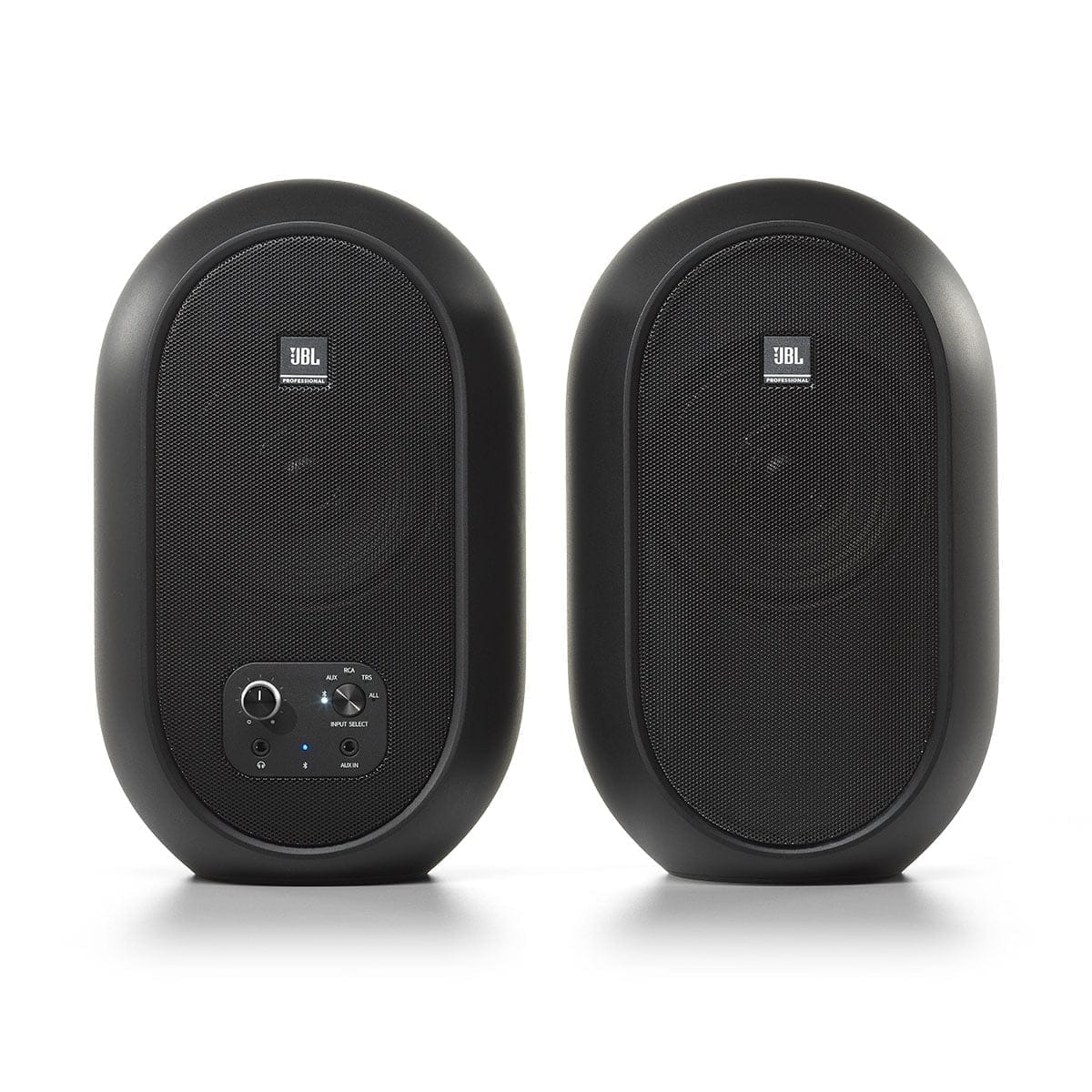

JBL 104-BT Compact Desktop Reference Monitors with Bluetooth

Original price was: ₹26,779.00.Current price is: ₹15,000.00.

The JBL 104-BT Compact Desktop Reference Monitors with Bluetooth. JBL 104-BT compact reference monitors with Bluetooth draws from seven decades of JBL Professional engineering to deliver the true sound. The JBL 104-BT are perfect for recording musicians, producers, PC gamers, podcasters and vloggers, as well as professional audio engineers seeking an accurate portable reference with Bluetooth streaming. The JBL 104-BT version is a sleek, elegant design with compact form factors, making stunning statements in any studio while conserving valuable work space.

JBL 104-BT Features:

  • Coaxial 4.5-inch (118 mm) LF driver and .75-inch (19 mm) soft-dome HF driver deliver full-range fidelity
  • Reference mixes over Bluetooth with built-in Bluetooth 5.0 streaming
  • Integrated 60-watt Class D power amplifier; 30 watts distributed to each speaker
  • Acoustically optimized for desktop placement
  • Molded ABS cabinet with contoured low-frequency port
  • Three sets of inputs allow connection with professional equipment, personal music players and consumer-level devices
  • Host monitor includes electronics for the extension monitor, minimizing wiring and clutter
  • Front-panel input control selects Bluetooth, Aux, RCA, TRS or combines all inputs
  • Front-panel volume control
  • Front-panel headphone jack with speaker mute feature
  • Integrated power supply
  • Available in black (104-BT) and white (104-BTW) variants
SKU: PRS-JBL-104 Categories: , ,
BrandJBL
Model104-BT
LF Driver4.5 in (118 mm)
HF Driver0.75 in (19 mm), soft dome
Crossover1725 Hz, 1st order
Input Sensitivity87 dB / 1 m
Power Amp60 W (30 W each speaker), Class D
Maximum Continuous SPL89 dB
Maximum Peak SPL102 dB
Maximum SPL (1m)104 dB (momentary peak)
MAXIMUM PEAK INPUT LEVEL (-10dBV / +4dBu)+6 dBV / +20.3 dBu
Frequency Response (±3 dB)60 Hz - 20 kHz
SYSTEM DISTORTION CRITERIA<10% THD at maximum output with full compressor / limiter engagement
ELECTRICAL DISTORTION CRITERIA<0.2%THD @ 1 kHz, 2.83 VRMS output; <1% THD @ 1 kHz, full rated output
Signal to Noise Ratio75 dBA (A-Weighted), 70 dBr (unweighted), relative to 2.83 VRMS output on HF
Coverage Angle120º x 60º
Dimensions (H x W x D)9.72 in x 6.02 in x 4.88 in (247 mm x 153 mm x 124 mm)
ENCLOSURE TYPEPorted
EnclosureABS with metal grille
ENCLOSURE FINISHMatte black acrylic paint
Audio Output Connectors1 x 3.5 mm (1/8") stereo headphone with auto speaker mute
Input Connectors2 x 1/4-inch (6.5 mm) balanced (+4 dBu); 2 x RCA (-10 dBV); 1 x 1/8-inch (3.5 mm) unbalanced (-10 dBV)
AC INPUT VOLTAGE100 – 240 VAC (± 10%), 50/60 Hz
Current Draw85 watts
LF Driver Power Handling30W, Class D
Net Weight (each)Host Monitor = 4.54 lb (2.06 kg); Extension Monitor = 3.81 lb (1.73 kg)
