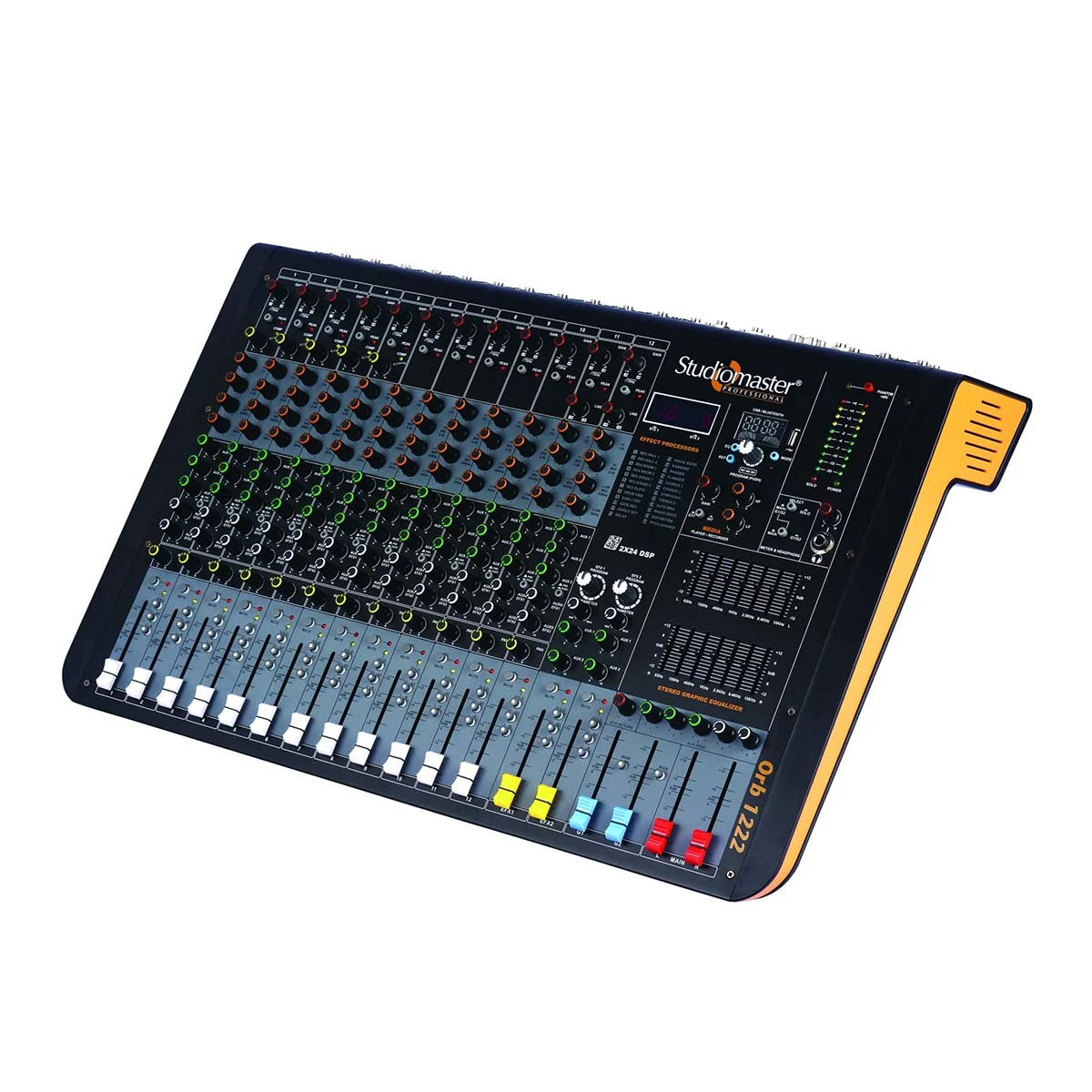

Studiomaster Orb 1222_angle Photo

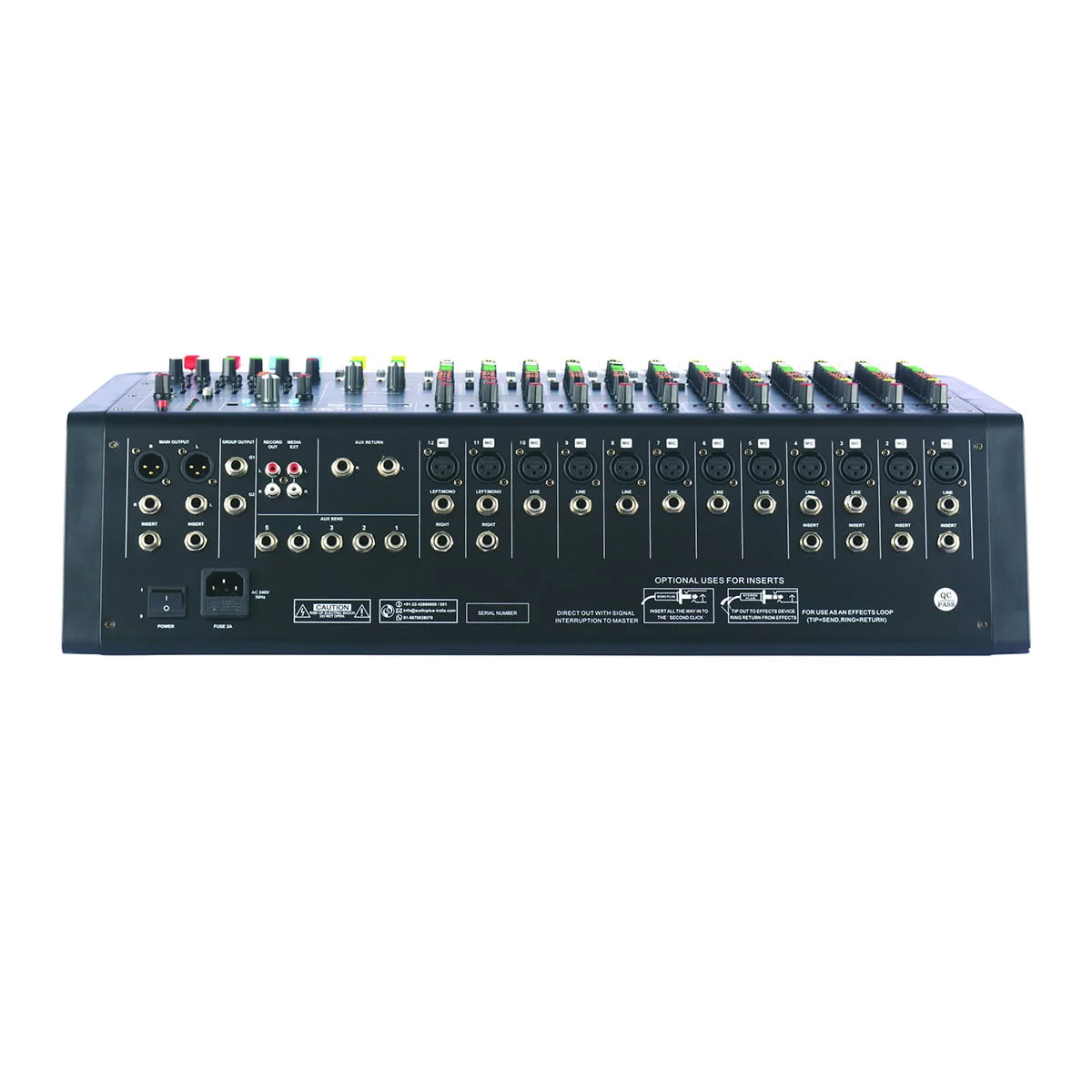

Studiomaster Orb 1222_back Photo

Studiomaster Orb 1222 12 Channel live Mixer with Build-in USB media Player

Original price was: ₹34,463.00.Current price is: ₹29,800.00.

Only 2 left in stock

The Studiomaster Orb 1222 12 Channel live Mixer with Build-in USB media Player. The Studiomaster Orb 1222 is a premium mixing consoles integrating state-of-the-art One Knob compression, DSP-based dual multi-EFX processor, built-in USB MP3 media player and recorder and a host of inputs, outputs and routing options.
ORB 1222 Key Features:
  • Professional audio mixing consoles with 12 mic / 14 line inputs.
  • MON:Ster (mono-stereo) inputs for full flexibility.
  • One Knob Compressor on channels 1-5.
  • Ultra-low-noise preamps with wide headroom and dynamic range.
  • Dual multi-EFX processor with 24 DSP presets and editable parameters.
  • Provisions to route EFX to monitor via Aux 1 and Aux 2.
  • Built-in USB MP3 media player and recorder with Bluetooth.
  • Level control, 2-band EQ with internal/external media input selection.
  • 75Hz low cut on mono channels.
  • 4-band EQ on all inputs.
  • 5 Aux sends – Aux 1-3 (with pre/post selection) and Aux 4-5 (post only).
  • Stereo AUX returns.
  • Balanced XLR and ¼” jack main outputs.
  • 2 subgroups with individual ¼” outputs.
  • Insert (send/return) on the first 4 mono channels and main output.
  • Mute, solo, group (G1-G2), and main (L-R) routing per channel.
  • Peak, comp, mute and solo LEDs per channel.
  • Stereo RCA input and record output.
  • Headphone output with level control.
  • Globally switched +48V Phantom power supply.
  • Responsive 60mm faders.
  • 7-band stereo graphic equalizer on the main output.
  • Dual 10-segment LED meter for main, group, and solo outputs.
  • Ergonomic angled design for better visibility.
  • Clutter-free rear panel input and output connectivity.
SKU: PRS-ORB-1222 Categories: , , ,

ORB 1222 Specifications:

BrandStudiomaster Professional
MODELORB 1222
Type Live Mixer with FX
Nominal Gain (Mic / Line / Stereo Line)60dB / 40dB / 20dB
Max Gain (Mic/Line/Stereo Line)80dB / 60dB / 40dB
INPUT-OUTPUT LEVELS
Mic (Gain Min/Gain Max)-10dBu / -60dBu
Line (Gain Min /Gain Max)+10dBu / -40dBu
Stereo Line (Gain Min /Gain Max)+10dBu / -20dBu
Aux Return (Nominal / Max)-10dBu / +30dBu
Clip indication5dB prior to true clip
Main Output, Group Output, Aux Send, Record Out (Nominal / Max)0dBu (0.775V RMS) / +20dBu (7.75V RMS) Max
Insert In/Out (Nominal / Max)0dBu (0.775V RMS) / +20dBu (7.75V RMS) Max
Mic Input Impedance5KΩ Balanced
Line Input Impedance20KΩ Balanced / 10KΩ Unbalanced
Frequency Response20Hz-20kHz (+0 / -1dB)
Total Harmonic Distortion< 0.02%
Cross-talk-80dB
MIC EIN (Equivalent Input Noise)-128dB
Main Out/Group Out-80dB
Aux Send-70dB
Record Out-70dB
EQUALIZATION
Mono MIC (Hi / Hi-Mid / Low-Mid / Low)±15dB @ 12kHz / 2.5kHz / 400Hz / 80Hz
Stereo Line (Hi / Hi-Mid / Low-Mid / Low)±15dB @ 12kHz / 2.5kHz / 400Hz / 80Hz
7-Band Stereo Equalizer±12dB @ 15kHz / 6.4kHz / 2.5kHz / 1kHz / 400Hz / 150Hz / 63Hz
Low Cut-3dB @ 75Hz
MISCELLANEOUS
Effects24-bit/48kHz Sampling Rate 2 x 24 DSP Presets
Phantom Supply+48V
Power Supply150V-240V / 50Hz
Fuse2A 250V AC
Power Consumption19W Max
Dimensions (W x D x H) mm630 x 490 x 160
Net Weight (Kg)10

Additional information

Brand

Warranty

CHANNELS

12 Channels

FEATURES

Bluetooth, Inbuilt Recording, USB Option
