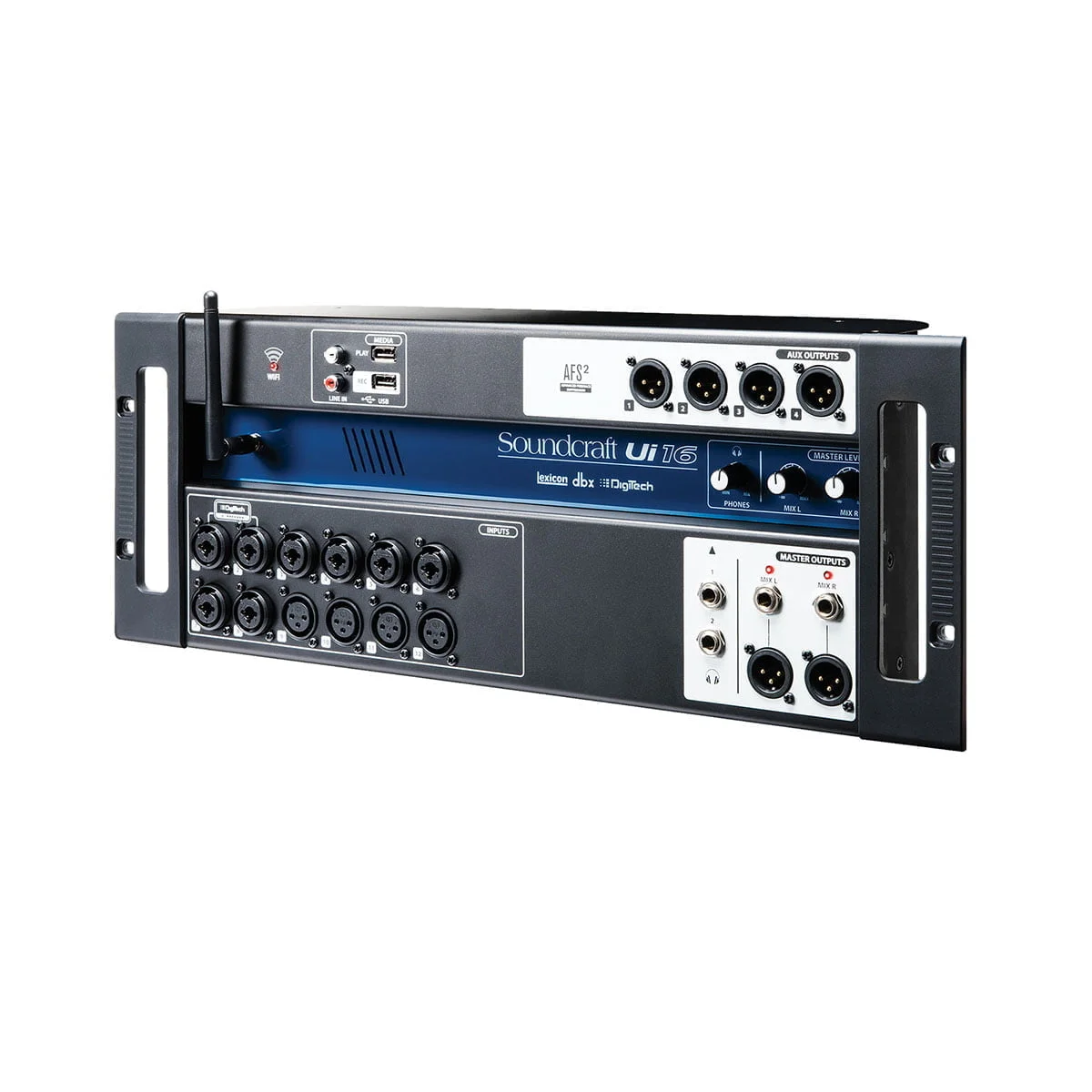

Soundcraft Ui16 Digital Mixer with Wireless Control
₹32,500.00
Out of stock

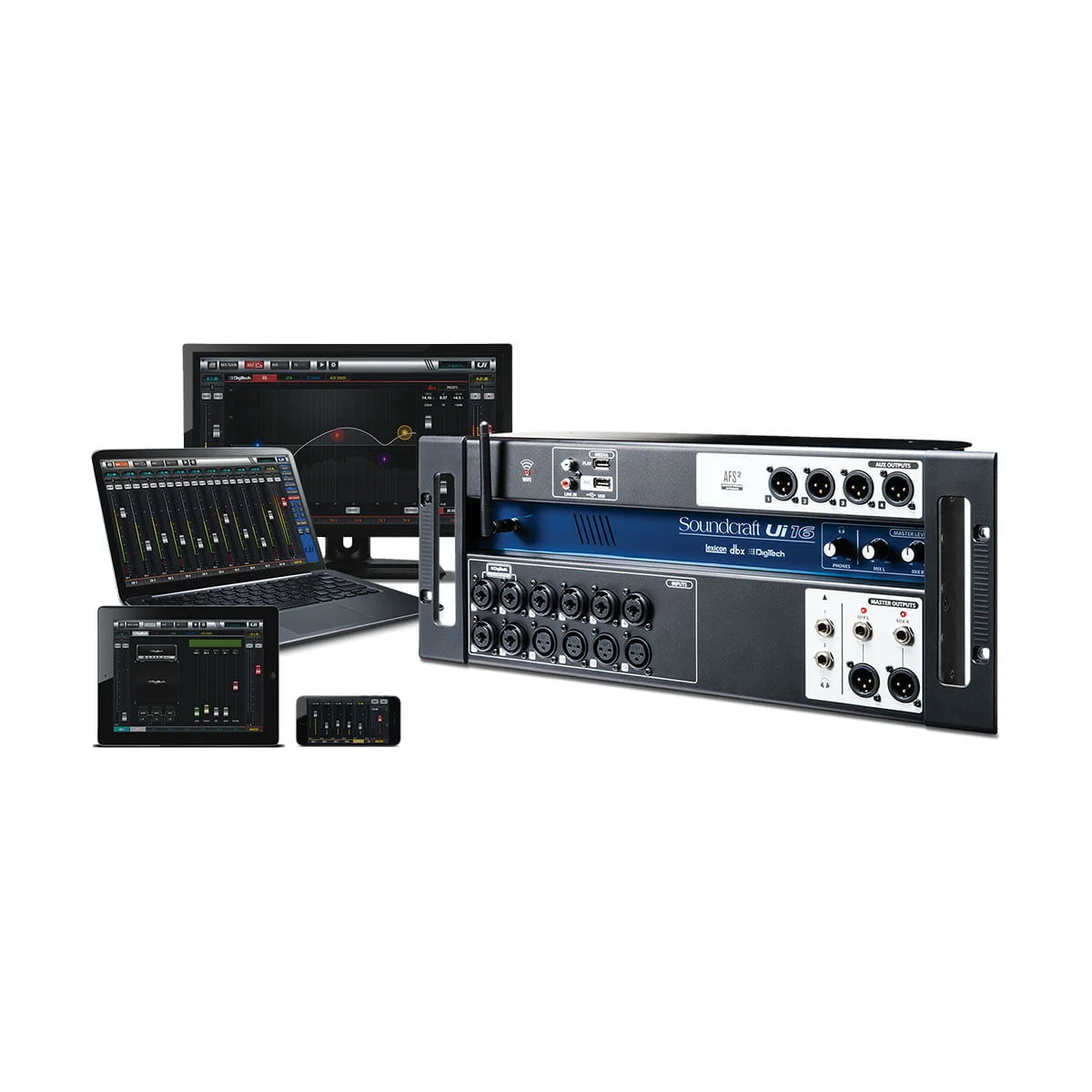

The Soundcraft Ui16 Digital Mixer with Wireless Control. The Soundcraft Ui16 is a 16-channel Digital Mixer and 2-channel USB audio playback and recording. The Soundcraft Ui16 Digital mixer feature cross-platform compatibility with iOS, Android, Windows, Mac OS, and Linux devices, and can use up to 10 control devices simultaneously. In addition, the Ui16 each feature built-in HARMAN signal processing from dbx, DigiTech and Lexicon, including dbx AFS2, DigiTech Amp Modeling, and more. Both models feature fully recallable and remote-controlled mic gain and phantom power, along with 4-band parametric EQ, high-pass filter, compressor, de-esser and noise gate on input channels.
Soundcraft Ui16 Key Features:
- Tablet/PC/Smartphone Controlled Digital Mixer
- Integrated Wi-Fi
- Cross-platform compatibility with iOS, Android, Windows, Mac OS, and Linux devices
- Use up to 10 control devices (tablets, phones, PCs) simultaneously
- Legendary Harman Signal Processing from dbx®, Digitech®, and Lexicon®
- Fully recallable and remote-controlled mic preamps
- 4-band Parametric EQ, High-Pass Filter, Compressor, De-esser and Noise Gate on input channels
- 31-band Graphic EQ, Noise Gate and Compressor on all outputs
- Real-Time Frequency Analyser (RTA) on inputs and outputs
- 3 dedicated Lexicon® FX effects processors: Reverb, Delay and Chorus
- Subgroups, Mute Groups, View Groups, and more mixer controls
- Show/Snapshot recall with channel safes and security lockout
- 2-channel USB audio playback and recording
- Password-protected Access limitation system
- Sync ID (multiple browser windows staying in channel Sync)
Overview

Soundcraft Ui16 offer 31-band graphic EQ, noise gate and compressor on all outputs, plus real-time frequency analyser (RTA) on inputs and outputs. Built in are three dedicated Lexicon FX busses: Reverb, Delay and Chorus. In addition, mixer controls include Subgroups, Mute groups and View groups, among others. The Ui Series mixers feature full Show/Snapshot recallability with channel recall safes. while security lockout features allow customization of device access to only specific functions and mixes if needed. Both mixers also offer independent network interfaces on board for simultaneous control by Wi-Fi and Ethernet, plus a floor-ready rugged chassis for live applications.
The Ui16 boasts eight XLR combo mic/line inputs, four XLR mic inputs, two channels of Hi- Z/instrument inputs, as well as a stereo RCA line input. A 2-channel USB media player is included, along with four balanced XLR Aux outputs, two quarter-inch headphone outputs with level control, plus balanced stereo XLR and quarter-inch main outputs. Two-channel USB audio playback is compatible with MP3, WAV and AIFF formats, and 2-channel USB Record direct-to-memory devices functionality is possible as well.
Ui16 Specifications:
Brand | Soundcraft |
Model | Ui16 |
Type | 16-channel Digital Mixer |
Mic Preamps | 12 Studer designed (8 combi, 8 XLR) |
Line Inputs | 2 (-10 unbalanced) |
Master Outputs | 2 (+4 XLR, with individual volume pots) |
Headphone Outputs | 2 (with shared volume pot) |
AUX Outputs | 4 (+4 XLR with 32 band graphic and dbx AFS2 Feedback Suppression) |
USB PLAY | USB A port |
USB RED | USB A port |
USB I/F | USB B port |

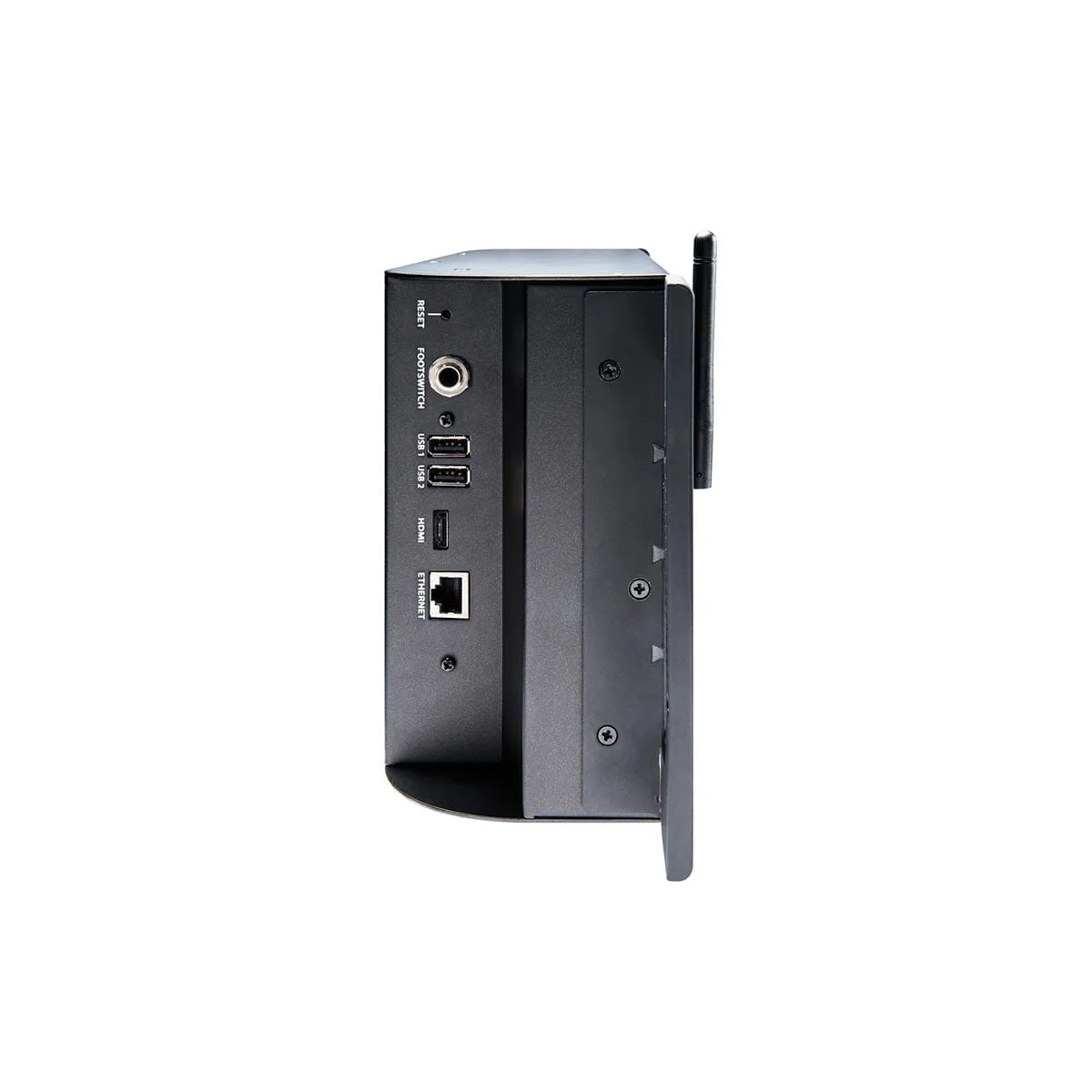

USB 1 | USB A, for controllers (such as a computer mouse) |
USB 2 | USB A, for software update installation |
Footswitch | ¼” for closure pedal event trigger |
Ethernet | RJ45, for LAN connections |
Frequency Response | 20Hz-20kHz +/- 0.5 dB |
THD | Mic input (Min gain to bus) @ 1kHz <0.005% ; Mic input (Max gain to bus) @ 1kHz <0.008% |
